Surface, deep holes

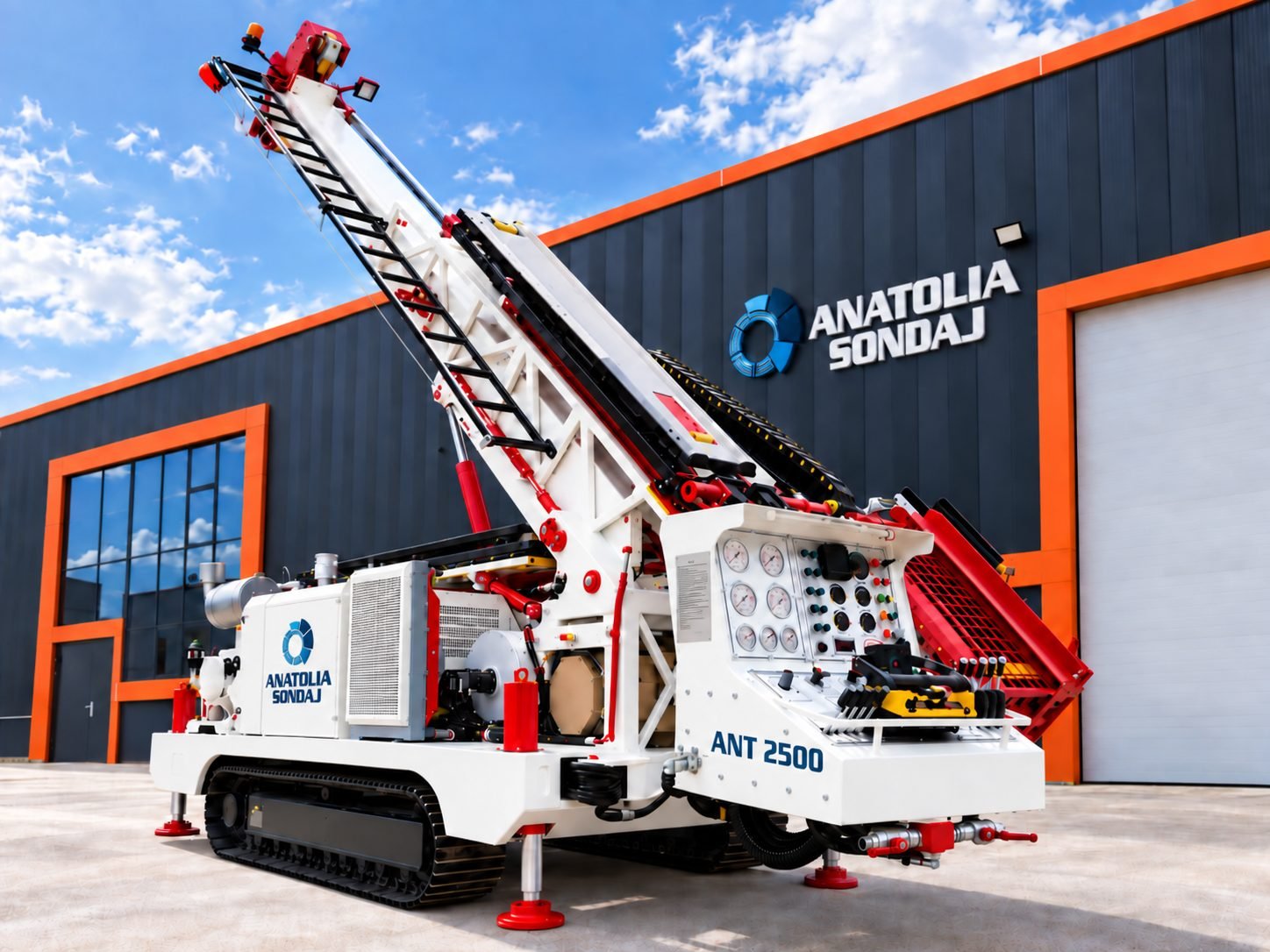

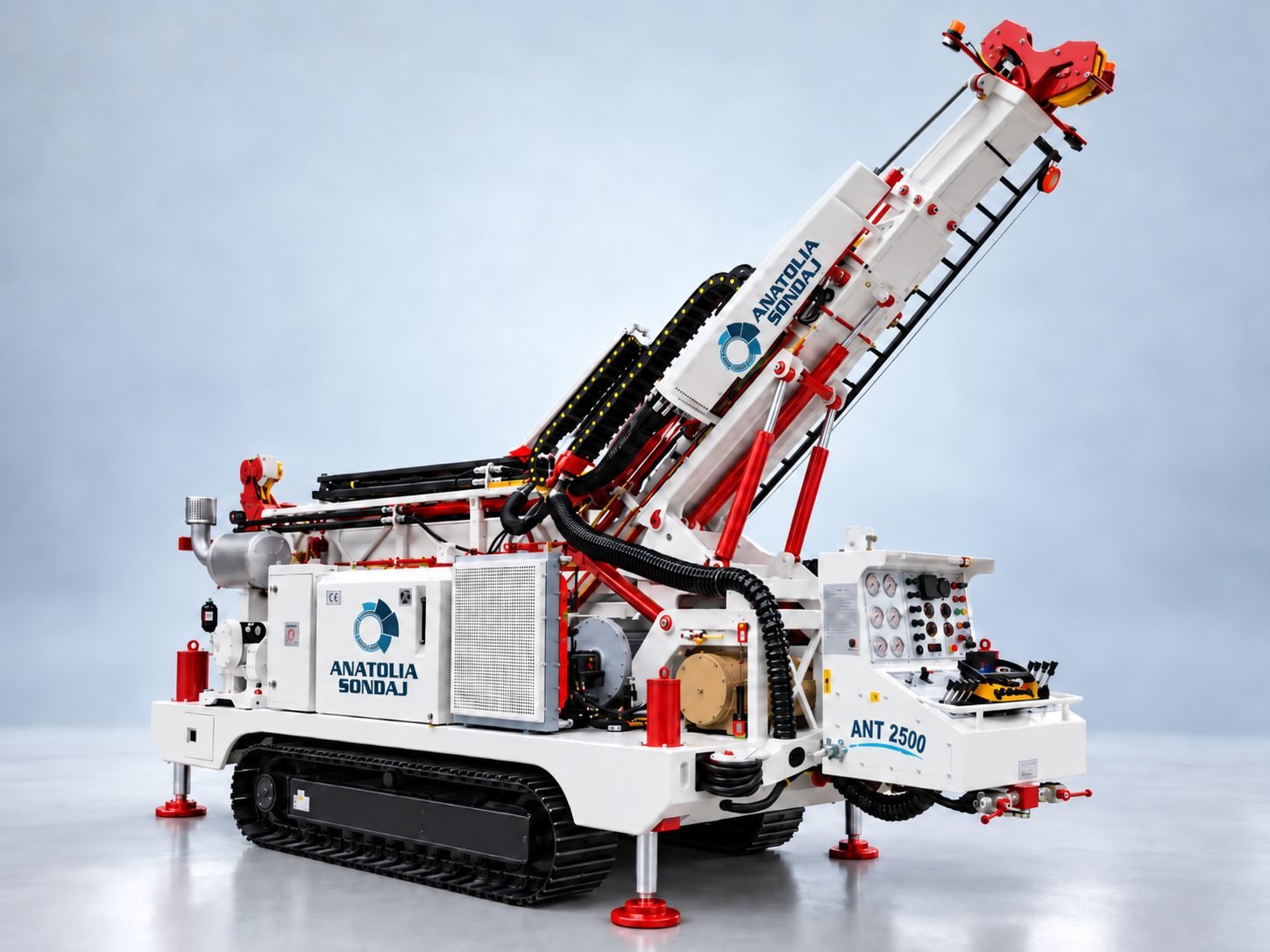

ANT 2500
Designed to run around the clock in difficult terrain and climate. Built around high quality hydraulic and mechanical components for long service life and high performance, the rig drills to 2,500 m in NQ.
2.500 mDepth capacity, NQ
24.000 kgPullback force
360–450 hpDiesel power range
9.582 NmMaksimum rotasyon torku
Delgi kapasitesi
Sized to answer deep core drilling requirements.
A machine that has completed its field trials
Developed around high quality hydraulic and mechanical components for long service life and high performance, the ANT 2500 moves quickly between setups and has completed its field trials with an operator-friendly, compact design.
ANT 2500 technical specification
Power unit
| Engine options | Cummins / Ford / Volvo / Mercedes-Benz |
| Maksimum güç | 360–450 hp @ 2.100 dev/dk |
| Motor torku | 1.700 Nm @ 1.300 dev/dk |
| Control unit | Elektronik (ECM) |
| Fuel tank | 200 L |
Rotation unit
| Tip | LF230 Longyear tipi |
| Hidrolik motor | 160 cc |
| Gearbox | Funk 4 ileri |
| Rod clamping diameter | 119 mm |
| Jaws | 7, hydraulic opening and closing |
| Tij tutma kapasitesi | 184.700 N |
Mast ve ilerleme
| Operating angle | 0°–90° |
| Feed stroke | 350 cm |
| Pullback capacity | 24.000 kg |
| Thrust capacity | 18.000 kg |
| Mast tipi | Telescopic, twin cylinder |
| Rod handling | 6 m rod pulling capacity |
Winches and carrier
| Tambur vinci | 18.000 kg, 15 m/dk |
| Drum winch rope | 18 mm |
| Wireline free pull | 37 kN, 130 m/dk |
| Wireline pull under load | 8,9 kN, 550 m/dk |
| Wireline rope | 6 mm, 1.600 m kapasite |
| Carrier | Hidrolik paletli, 8–12 ton |
Hidrolik
| Ana pompa | Rexroth / Kawasaki / Danfoss, 160 cc, 350 bar |
| 2. pompa | 45 cc, 350 bar |
| 3. pompa | 28 cc, 280 bar |
| Gear pumps | Casappa / Hema, 19 cc ve 8 cc |
| Wireline hidromotoru | Brevini / Danfoss, 400 cc |
| Mud pump hydraulic motor | Danfoss / Eaton, 100 cc |
| Tank and cooling | 400 L, dual circuit, AKG |

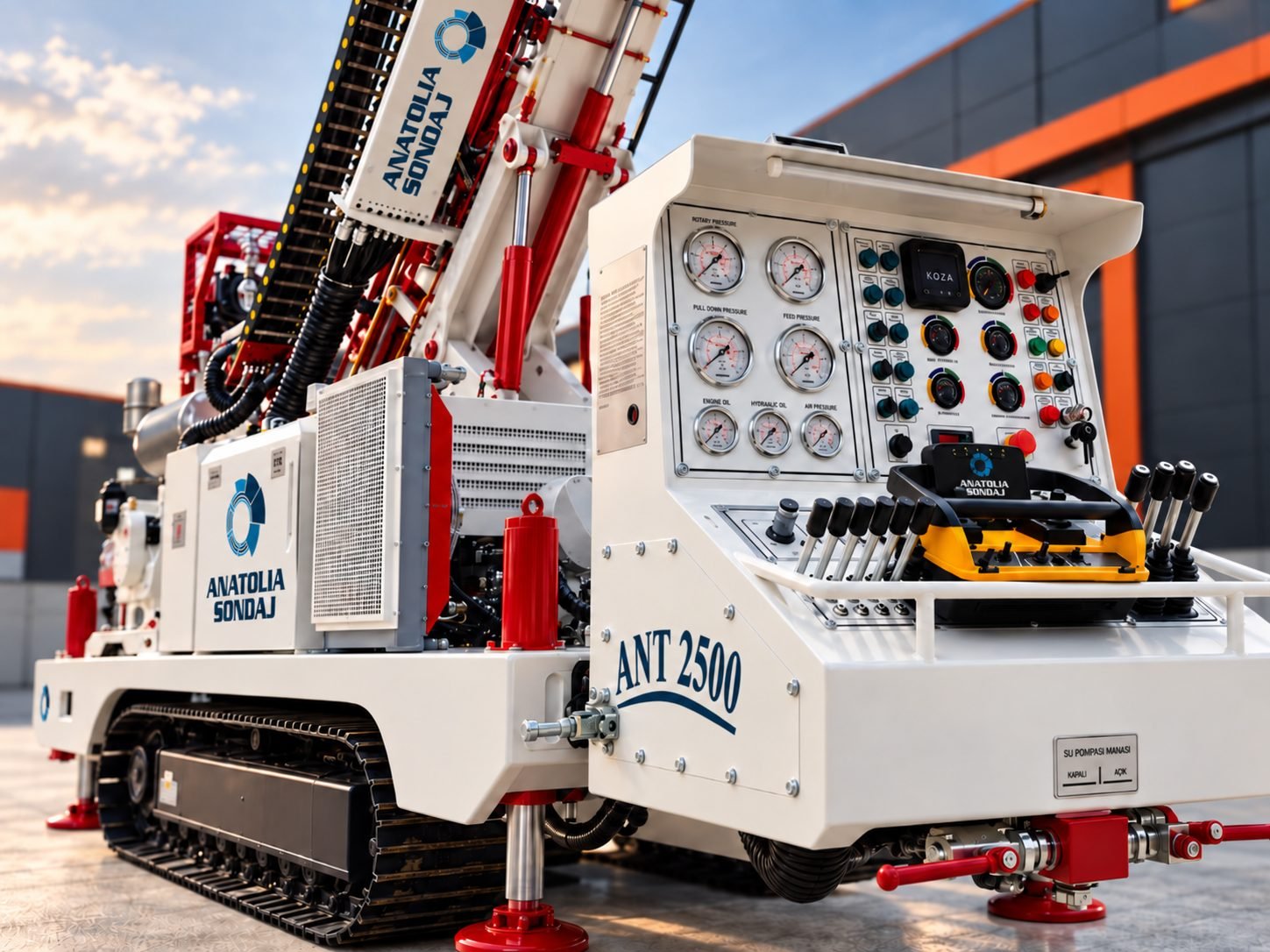

Circulation and control
| Mud pump | Triplex |
| Hydraulic control unit | Danfoss / Bucher |
| Hidrolik komponentler | Sun / Oleoweb |
| Instrumentation | Analog ve dijital |
| Uzaktan izleme | Standart |
| Filtreleme | Pressure, return and suction |
Not sure which rig you need?
Send us the target depth, the core size and the location of the operation, and we will decide together which rig is enough for the job.
