From the factory to the field: rigs, service and spare parts
We combine years of field experience with our own manufacturing capability. In our factory in Ankara we build the ANT 2500, ANT 18 and ANT 10 with our own R&D and engineering. We run these rigs on our own contracts, test them in real field conditions and keep improving them. For us a rig sale does not end at delivery; it is a long-term working partnership.

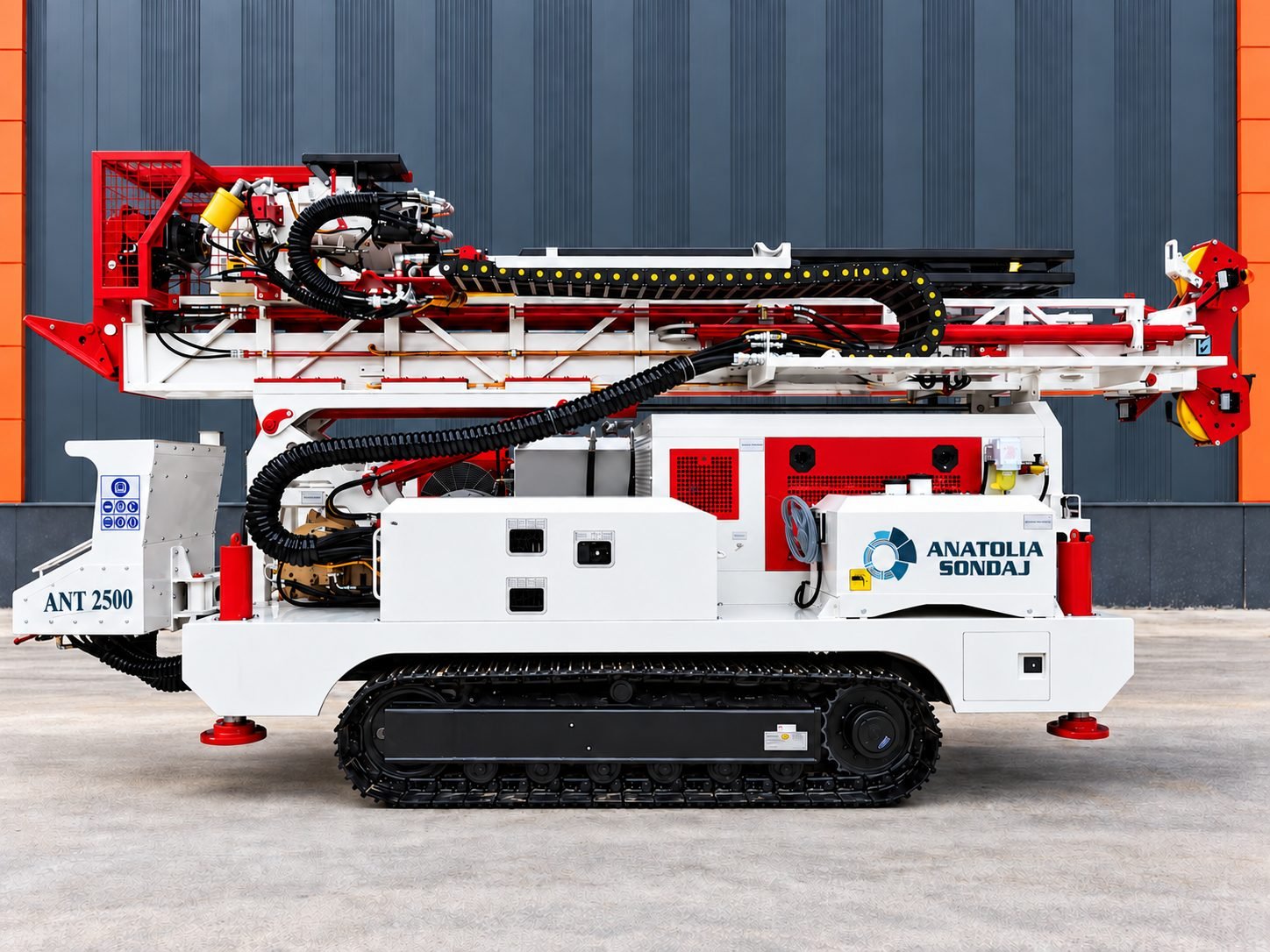

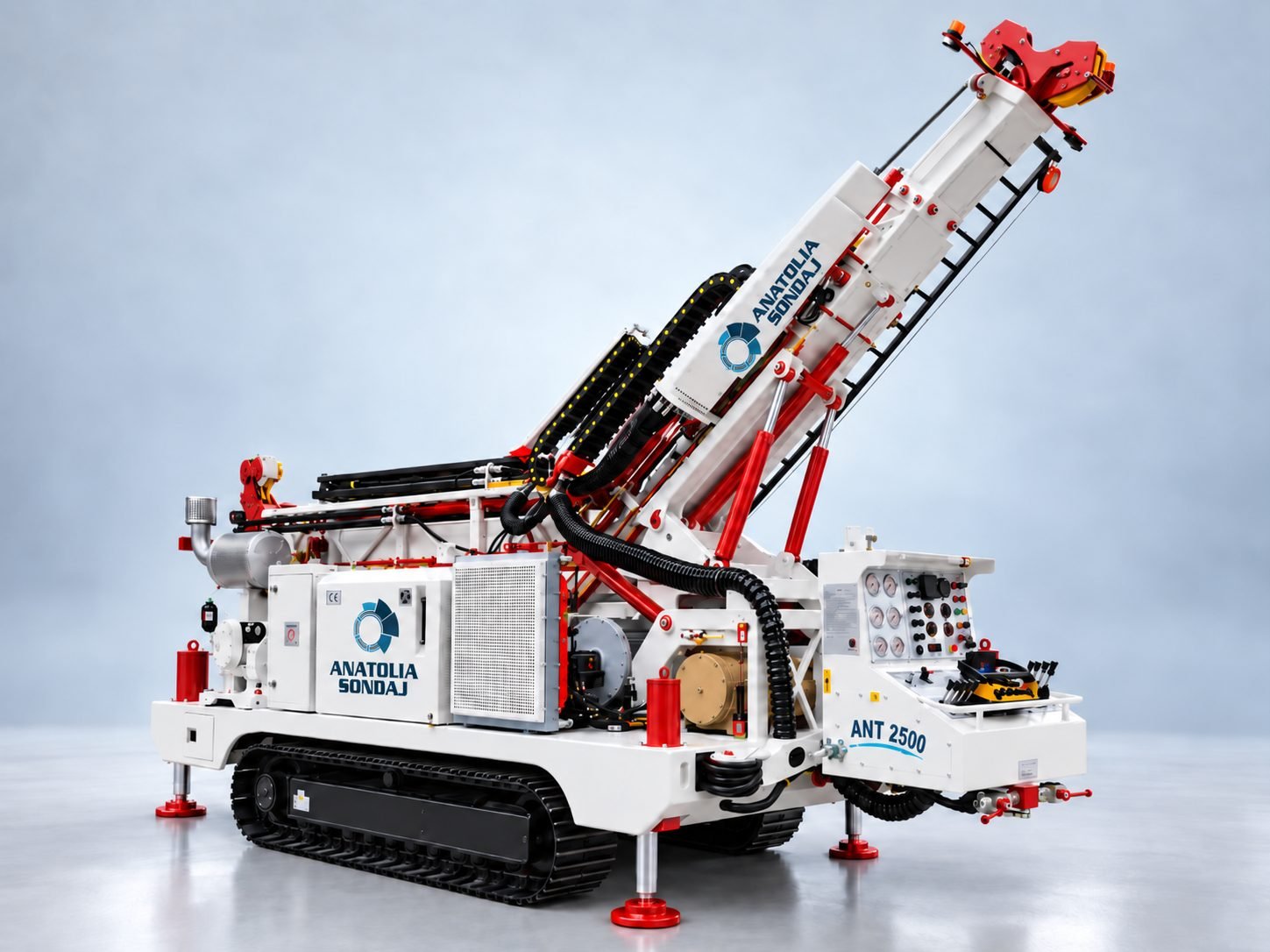

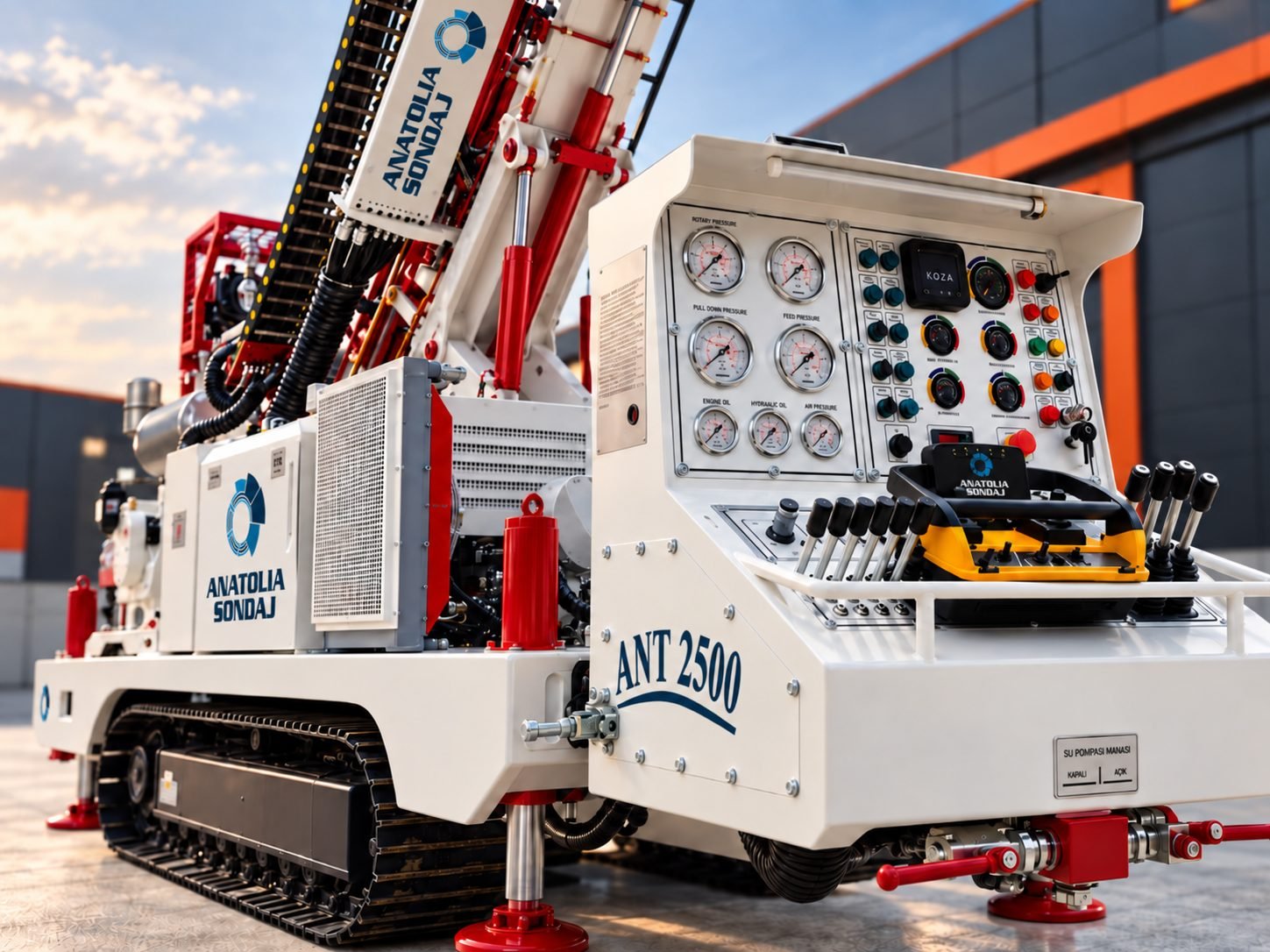

ANT 2500
Surface, deep holes
| Depth, BQ | 3.000 m |
| Power | 360–450 hp diesel |
| Pullback force | 24.000 kg |
| Weight | Crawler, 8–12 t |

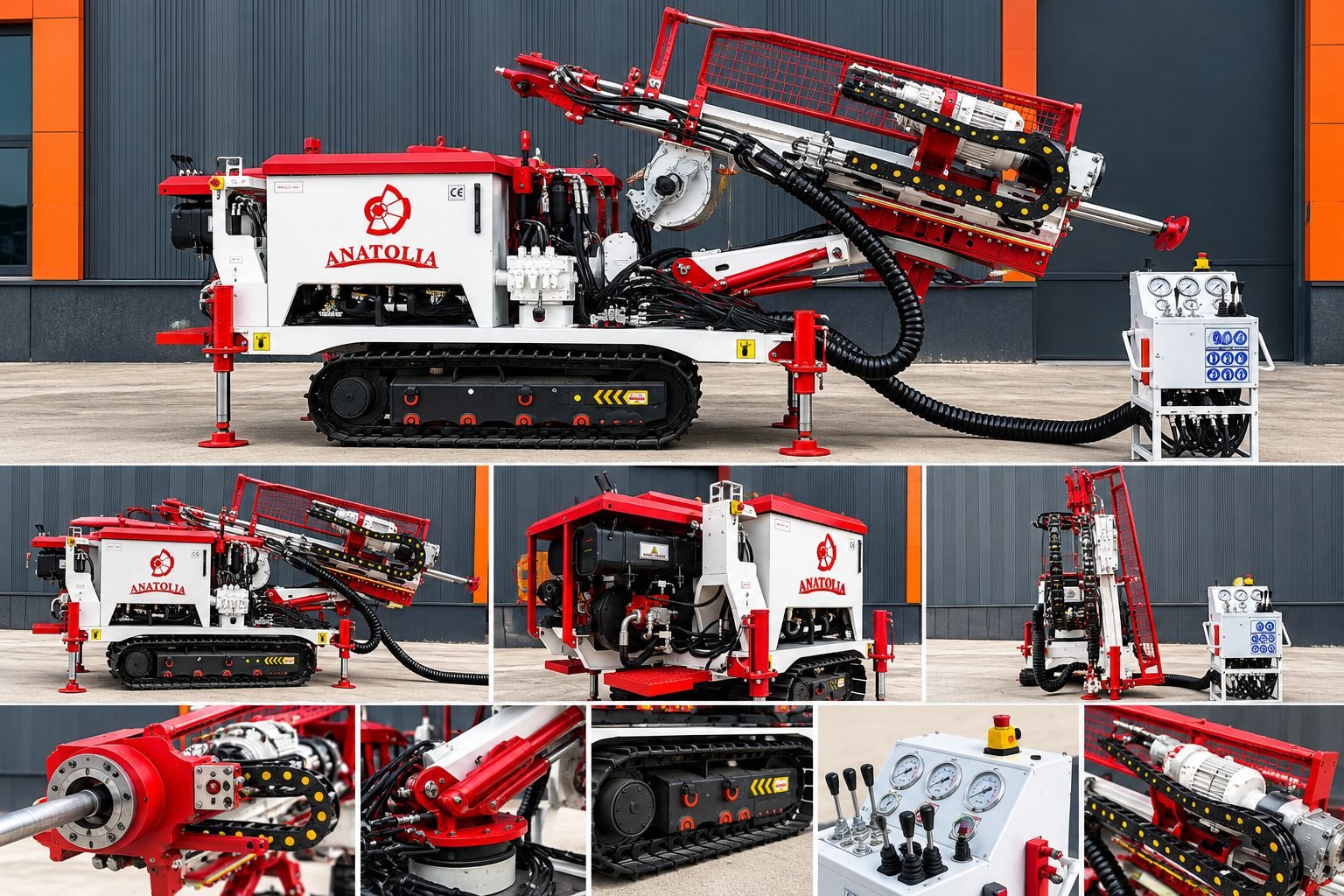

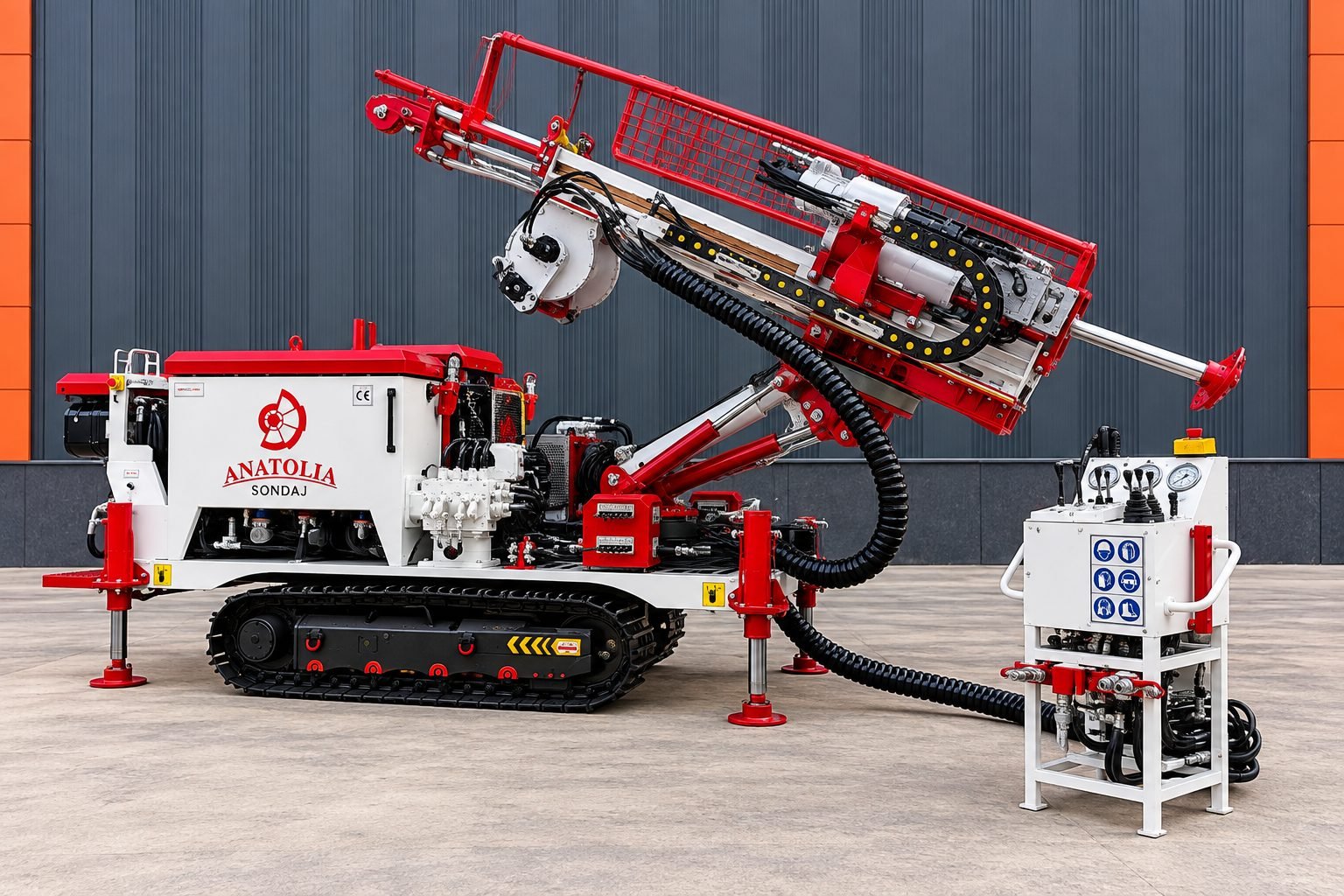

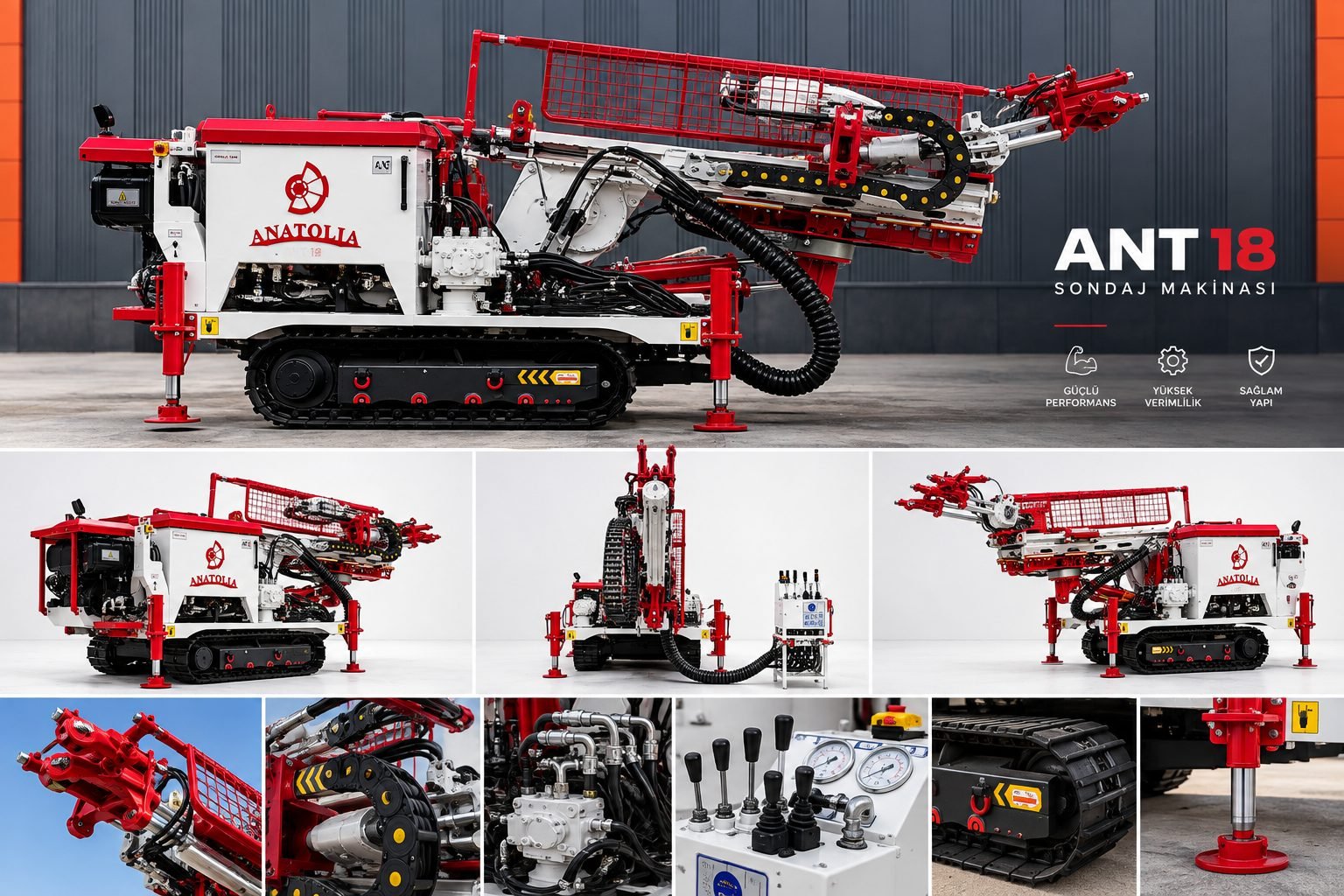

ANT 18
Underground and inclined surface holes
| Depth, BQ | 1.000 m |
| Power | 120 kW electric |
| Pullback force | 9.000 kg |
| Weight | Crawler, 7.5 t |

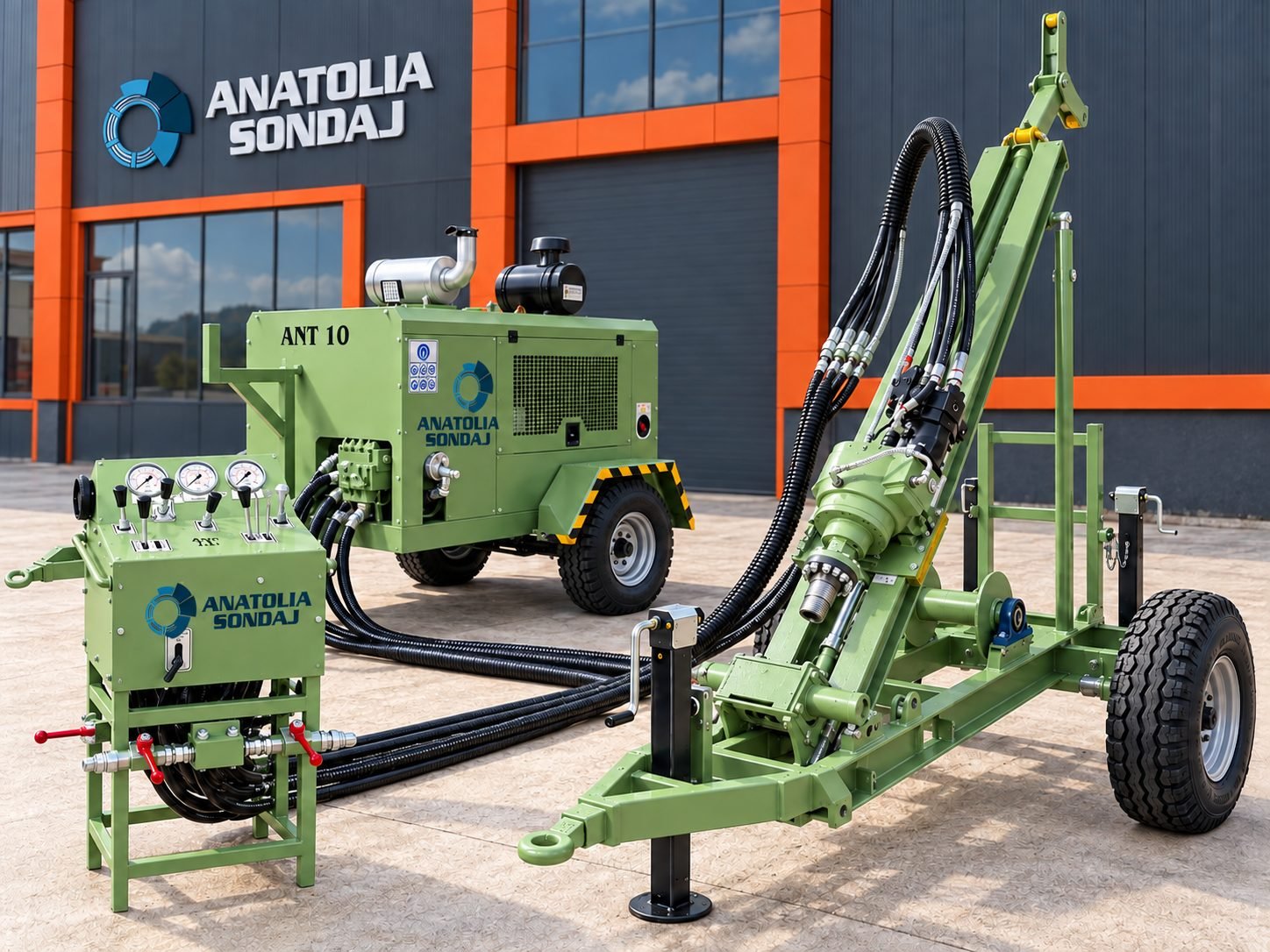

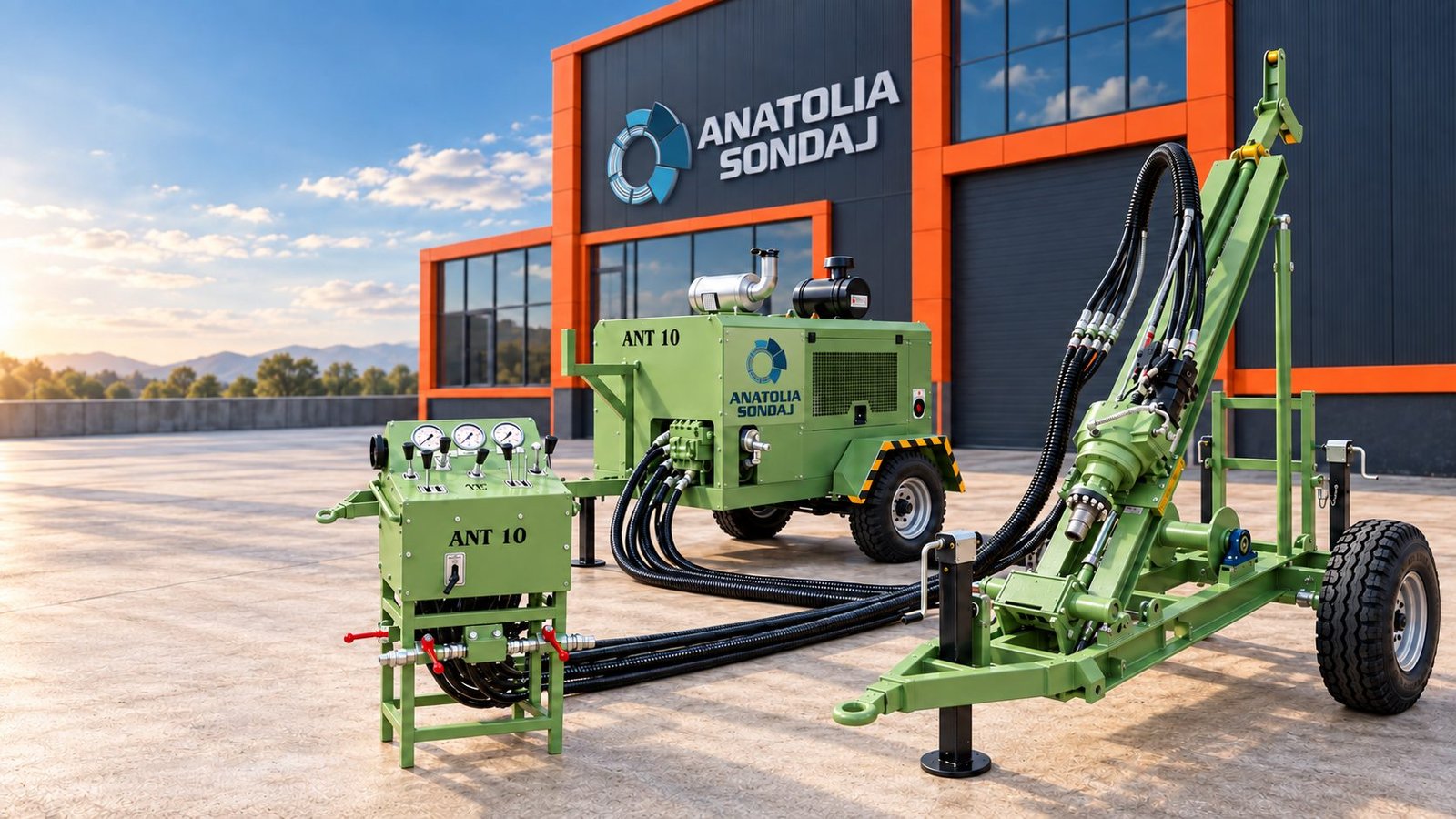

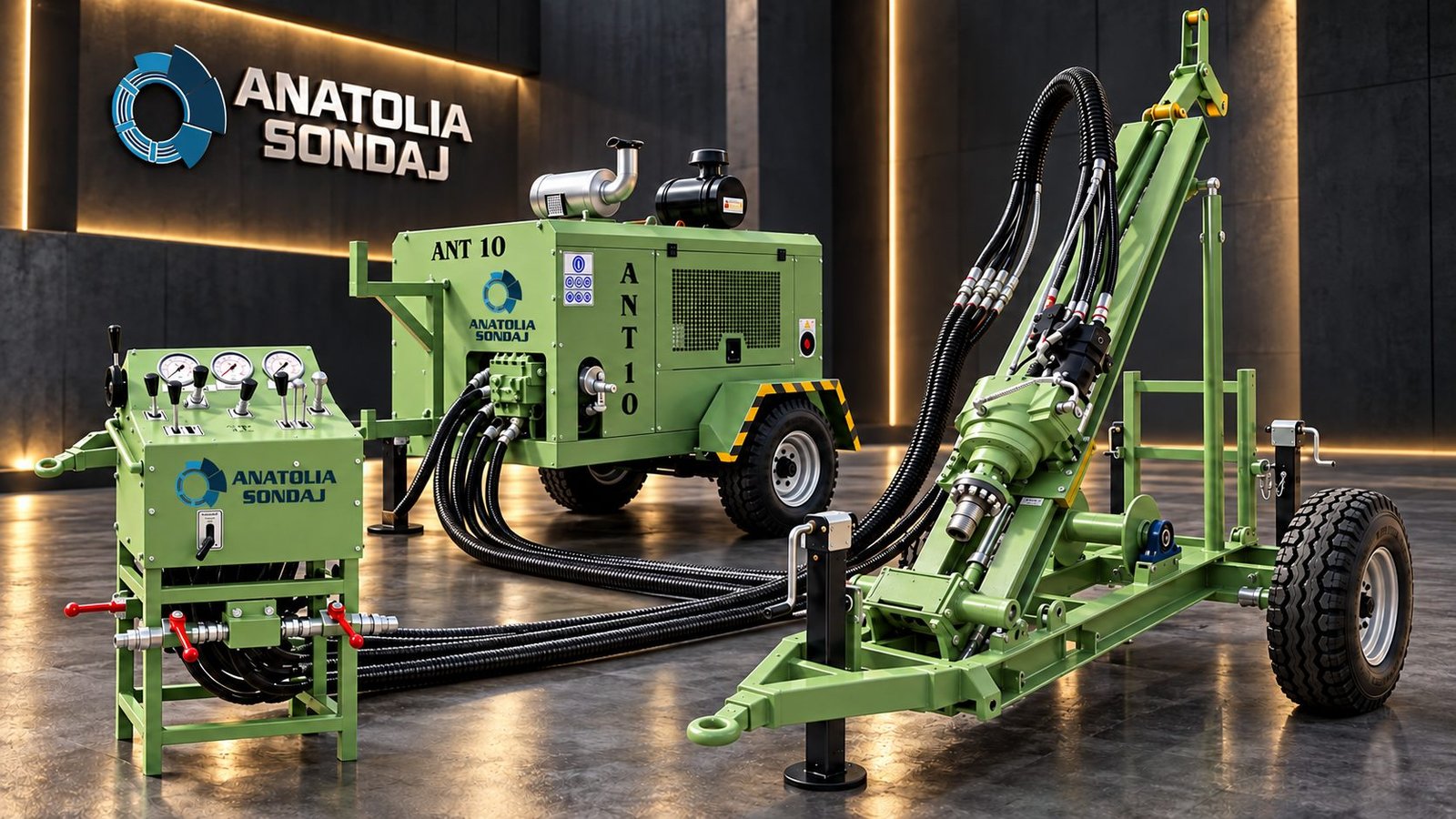

ANT 10
Portable, easily moved
| Depth, BQ | 300 m |
| Power | 130–150 hp diesel |
| Pullback force | 4.300 kg |
| Weight | Trailer, 2 t |
Built in Ankara
Our factory opened in 2023 with a capacity of 40 machines a year.
CE marked
Assessed under Machinery Directive 2006/42/EC against EN 16228-1, the safety standard for drilling and foundation equipment.
Components you can source
Rexroth, Kawasaki, Danfoss, Casappa, Brevini, Deutz, Cummins. No proprietary part that can only be bought from us.
Commissioning and training
Our engineers travel with the machine, set it up at the collar and train your crew until they can complete a shift without us.
Not sure which rig you need?
Send us the target depth, the core size and the location of the operation, and we will decide together which rig is enough for the job.
